Bases

Penco locker bases are available for knocked down (KD) lockers with 6" legs. For lockers with no legs, zee bases raise lockers 4" and provide a toe space in the front and concealed flange for floor anchoring.

Product Catalog

Lockers

Shelving

Pallet Racks

Garment Dispensers

Hygiene Line

Locker Assembly

Click here to view video from Youtube

Watch Now

Printer Friendly

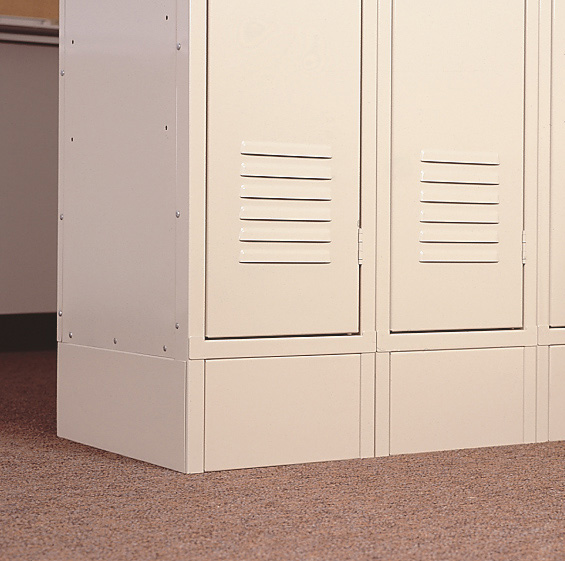

Individual Closed Bases
Front and end bases are designed to fit between standard Penco 6” legs. They present a clean flush appearance and prevent the accumulation of dust and dirt under the lockers. Front Base snaps in; End Base slips over legs during locker assembly. Only available for knocked down lockers with 6” legs.

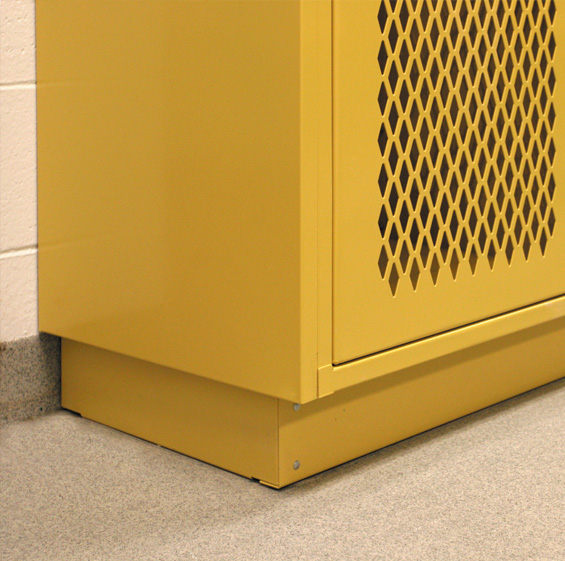

Zee Bases
Zee bases raise lockers without legs 4” off the floor when there is no concrete or wood base. They provide a toe space in the front and a concealed flange for floor anchoring at the rear. The rear legs are available to support the back of the locker when using Zee bases (6” high zee bases are also available.) Zee bases are available only in 72” lengths, and may need to be cut to fit at the time of installation. Splices/End Bases are used at ends of rows, and where the front sections join. Not for use on Welded, Stadium or Patriot lockers.

CLOSED BASES: Provide 18 gauge closed metal front and end bases on knocked down lockers having legs. Front bases shall be installed between legs without overlap or exposed fasteners. Provide end bases on exposed ends. Bases shall be finished to match lockers.

ZEE BASES: Knocked down lockers shall be furnished with 4" high or 6" high 14 gauge zee base flanged outward at top for support of lockers and inward at bottom for anchoring to the floor. Not for use for Stadium and Welded Lockers.

Color Number	Color Name	Color
054	Canvas
021	Gray Ash
028	Gray
073	Champagne
723	Light Putty
012	Tawny Tan
701	Spray Green
952	Turquoise Teal
055	Shamrock
812	Hunter Green
715	Lake Blue
823	Slate Blue
806	Marine Blue
052	Reflex Blue
822	Regal Blue
058	Nordic Purple
056	Sunburst
710	Sagebrush Yellow
720	Mandarin Orange
722	Patriot Red
767	Cardinal Red
736	Burgundy
848	January White
949	Jet Black

NOTE: Colors shown are as close to actual finishes as the printing process allows. Do not make your final color selection based on the color shade shown on this page. Penco Color Charts are available for a more accurate color match. Exposure to high humidity, chlorine salts, abrasive cleaners, germicidal cleaners and acids can damage the finish and will void the guarantee. For outdoor applications or other harsh environmental conditions, contact your Penco Representative.
