Recess Trim

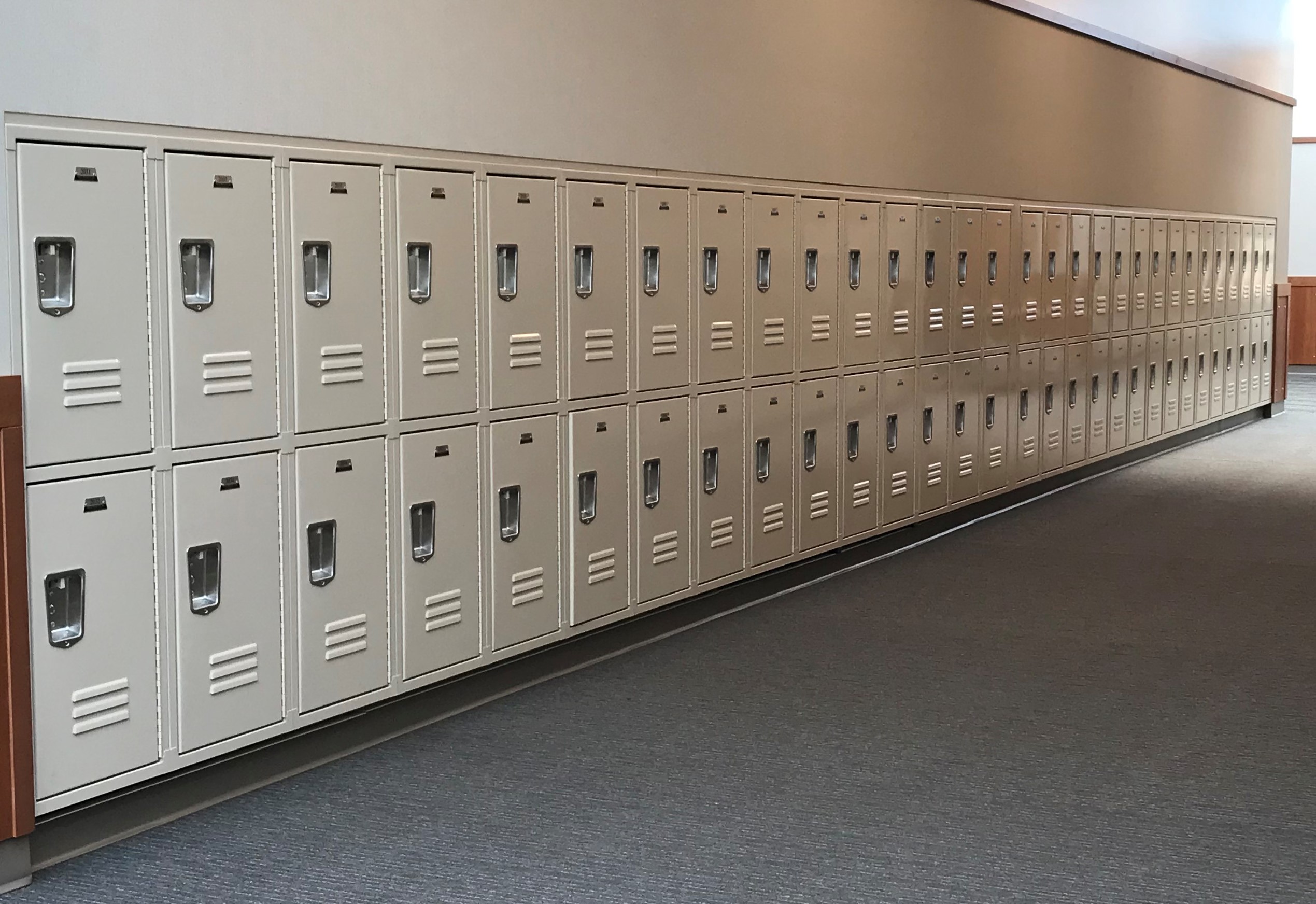

Recess trim is 3” wide and bridges the gap between lockers and wall and/or soffits when the lockers are recessed into a wall.

Product Catalog

Lockers

Shelving

Pallet Racks

Garment Dispensers

Hygiene Line

Locker Assembly

Click here to view video from Youtube

Watch Now

Printer Friendly

Recess Trim

Side trim for left hand (LH) and right hand sides (RH) are different. Side Trim comes in three types: 1) for use with lockers with no legs, 2) with 6” legs and 3) for use with Bottom Recess Trim.

The soffit is to be constructed by general contractor. Face of soffit must be flush with face of locker. There should be 1” between top of locker and bottom of soffit. The recessed trim extends 3/8” from face of soffit.

RECESS TRIM: Vertical and/or horizontal recessed trim shall be provided where shown. Trim shall be formed from 18 gauge sheet steel and have a 3" face dimension. Trim shall be furnished in standard lengths as long as practical and attached to lockers with concealed clips. Finish caps and splices shall be provided as required. Trim shall be finished to match lockers.

Color Number	Color Name	Color
054	Canvas
021	Gray Ash
028	Gray
073	Champagne
723	Light Putty
012	Tawny Tan
701	Spray Green
952	Turquoise Teal
055	Shamrock
812	Hunter Green
715	Lake Blue
823	Slate Blue
806	Marine Blue
052	Reflex Blue
822	Regal Blue
058	Nordic Purple
056	Sunburst
710	Sagebrush Yellow
720	Mandarin Orange
722	Patriot Red
767	Cardinal Red
736	Burgundy
848	January White
949	Jet Black

NOTE: Colors shown are as close to actual finishes as the printing process allows. Do not make your final color selection based on the color shade shown on this page. Penco Color Charts are available for a more accurate color match. Exposure to high humidity, chlorine salts, abrasive cleaners, germicidal cleaners and acids can damage the finish and will void the guarantee. For outdoor applications or other harsh environmental conditions, contact your Penco Representative.
