Fillers

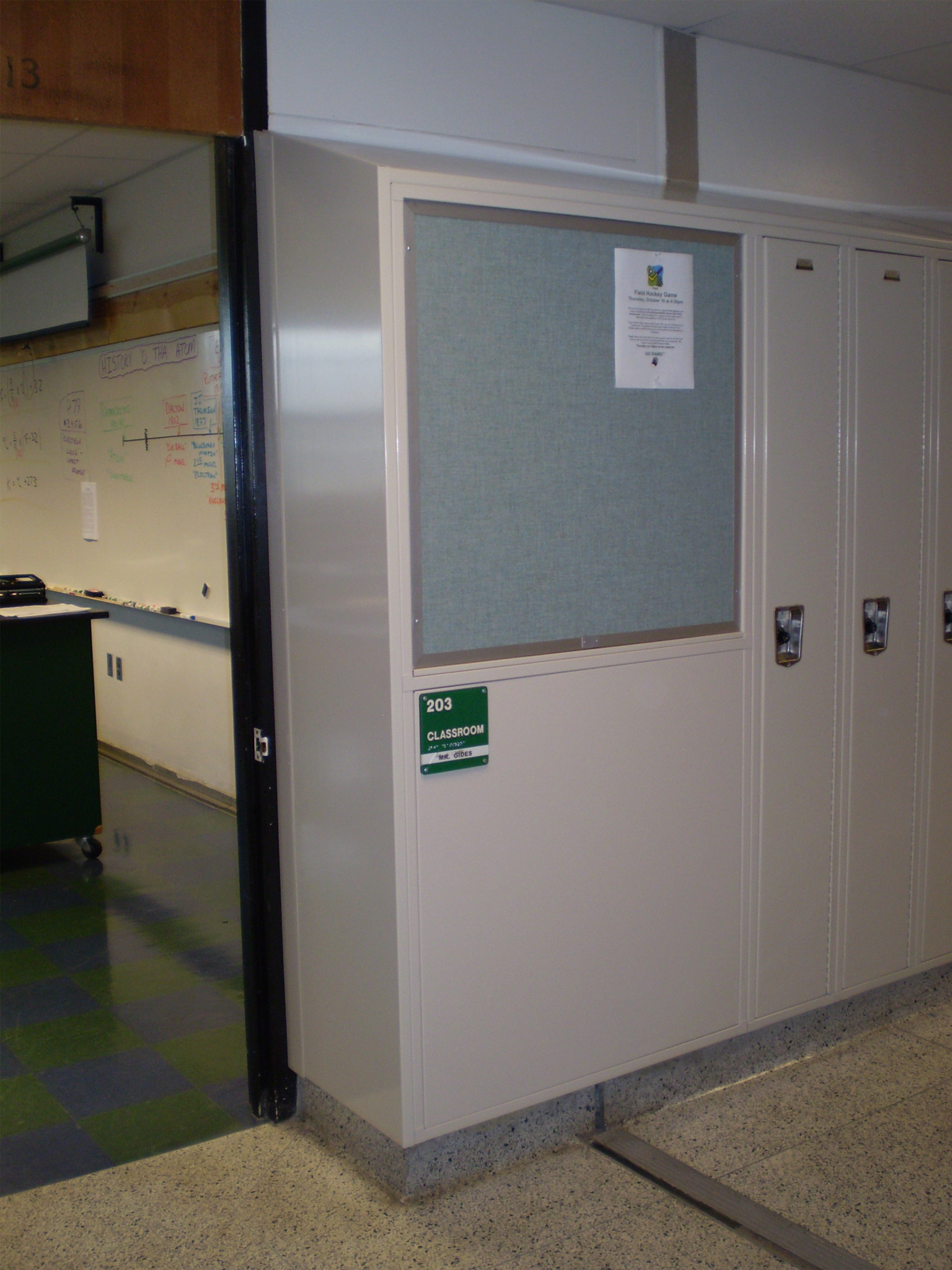

Penco provides standard fillers to adapt lockers to a wide range of field conditions and provide a professional, finished appearance. Fillers can be used to cover columns, pipes or other obstacles in a row of lockers, or fill the gap between the lockers and a wall.

  • Fillers
  • Fillers
  • Fillers
  • Fillers
  • Fillers

Top Fillers

Top Fillers

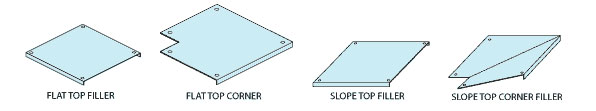

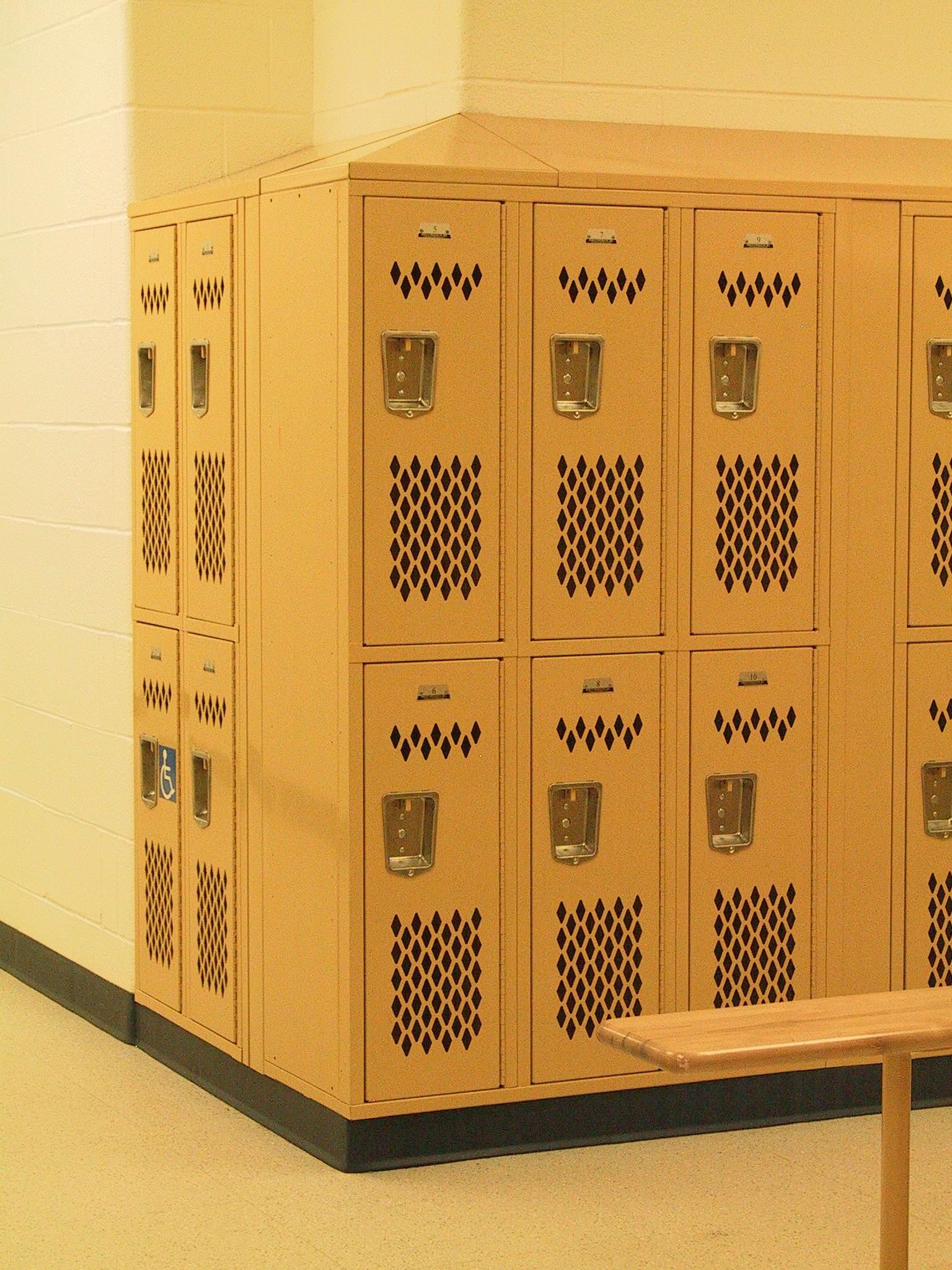

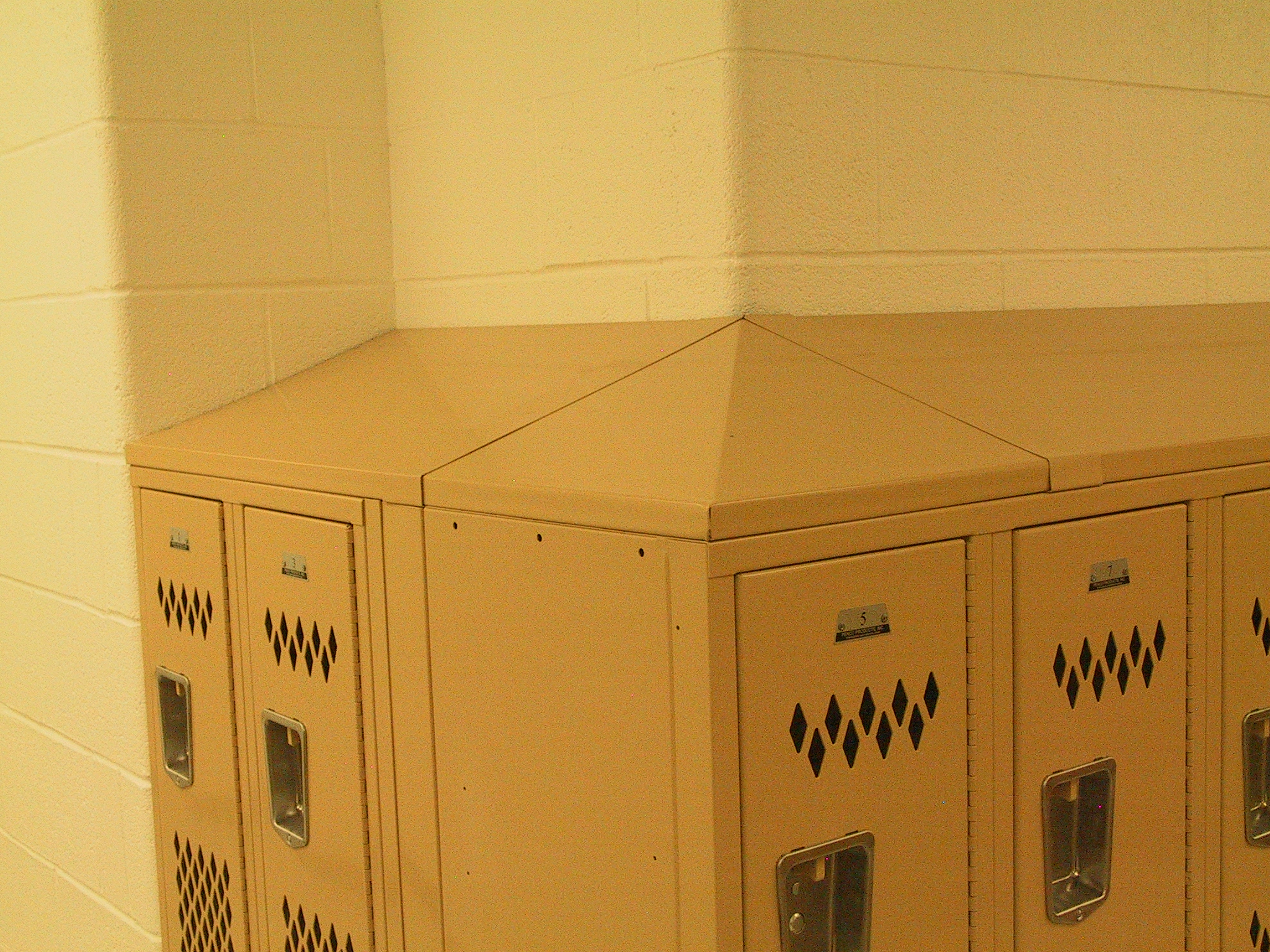

Top Fillers cover gaps between tops of lockers. They overlap the locker tops and can be field cut to allow for pipes, etc. There are separate designs for flat top vs. slope top, and in-line vs. corner applications

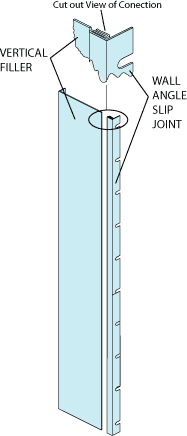

Vertical Fillers
These come in three widths and are designed to be used in conjunction with Wall Angle Slip Joints for a solid fit and smooth finish. The slip joint conceals any raw edges caused by field cutting. Additional sizes are available.

FRONT FILLER: Fillers for spaces between lockers or between lockers and a wall shall be fabricated from 20 gauge sheet steel and formed in an angle shape. Slip joint angles shall be 20 gauge sheet steel formed in an angle shape with a slot on one leg to form a pocket which provides adjustable mating with the angle filler. Attachment shall be by means of concealed fasteners. Fillers shall be finished to match lockers.

Color NumberColor NameColor
054Canvas
021Gray Ash
028Gray
073Champagne
723Light Putty
012Tawny Tan
701Spray Green
952Turquoise Teal
055Shamrock
812Hunter Green
715Lake Blue
823Slate Blue
806Marine Blue
052Reflex Blue
822Regal Blue
058Nordic Purple
056Sunburst
710Sagebrush Yellow
720Mandarin Orange
722Patriot Red
767Cardinal Red
736Burgundy
848January White
949Jet Black

NOTE: Colors shown are as close to actual finishes as the printing process allows. Do not make your final color selection based on the color shade shown on this page. Penco Color Charts are available for a more accurate color match. Exposure to high humidity, chlorine salts, abrasive cleaners, germicidal cleaners and acids can damage the finish and will void the guarantee. For outdoor applications or other harsh environmental conditions, contact your Penco Representative.
